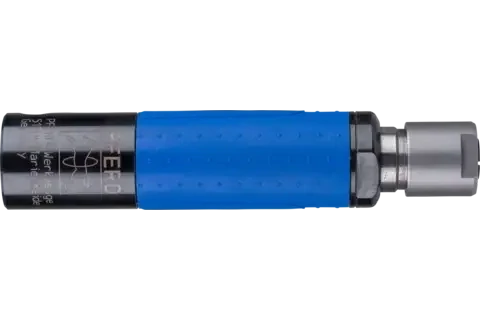

PFERD Straight handpieces HA 12 G28

Handpiece HA 12 G28 with 6 mm collet max: RPM 18,000

Collet group: 12

Dia. External: 35 mm

Handpiece-side coupling: G28

Handpiece-side coupling dia. [mm]: 28

Height: 35 mm

Incl. dia collet [mm]: 6

Length: 170 mm

Net weight: 0.545 kg

PFERD type: HA 12 G28

RPM, max: 18000 RPM

Width: 35 mm

Packaging unit: 1 piece

Description

Straight handpiece with 6 mm collet and G28/diameter 28 mm sliding coupling, suitable for BW 12 DIN 10/G28, BW 12 DIN 15/G28, BW 12 DIN 10/G28 oHA, and BW 12 DIN 15/G28 oHA.

Advantages

Handpiece with clamping nut for maximum clamping force.

Collets up to 12 mm are available.

Contents

2 EM size 22 mm keys, 1 collet.
